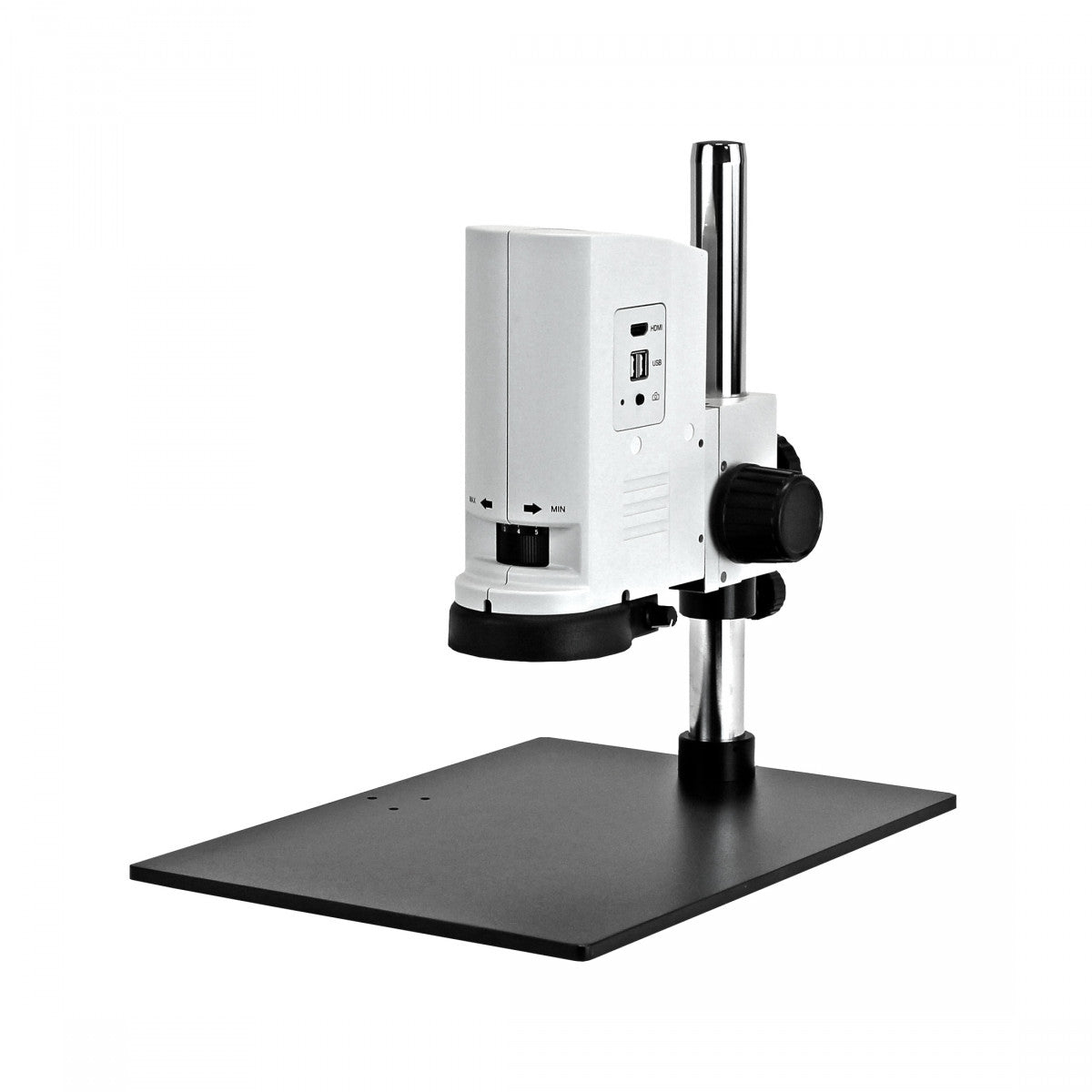

ZoomHD Microscope with Post Mount
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Product Overview
The UNITRON ZoomHD digital inspection microscope with post mount provides live 1080p imaging and adjustable zoom for inspecting small components without a computer. Its integrated lighting and camera controls make it practical for routine visual inspection and documentation.
Key Features
- 2 MP CMOS camera with wide dynamic range
- 0.7×–5.0× zoom with repeatable click stops
- Integrated adjustable LED ring illumination
- Wireless mouse control and USB image storage
- Monitor not included; compatible HD monitor required
What Can This Microscope Be Used For?
- Electronics and printed circuit board inspection
- Manufacturing quality control and component examination
- Inspection photography, training and documentation
Technical Specifications
| Camera | 2.0 MP CMOS with WDR |
|---|---|
| Live video | 1080p at 60 fps via HDMI |
| Zoom range | 0.7×–5.0× |
| Standard objective | 1×, 110 mm working distance |
| Optional objective | 0.5×, 170 mm working distance |
| Illumination | Integrated adjustable 56-LED ring light |
| Connectivity | HDMI and two USB 2.0 ports |
| Monitor | Monitor not included; compatible HD monitor required |
| Mount/stand | Mount for 32 mm pole; stand not included |
| Image storage | User-supplied USB flash drive, up to 128 GB |
Compatibility & Ordering
Mount for 32 mm pole; stand not included. Monitor not included; compatible HD monitor required. Image capture requires a customer-supplied USB flash drive. Confirm your workspace and monitor requirements before ordering.
Manufacturer Resources
UNITRON microscope manufacturer information
Additional Product Details
MIGHTY DIGITAL INSPECTION IN A COMPACT DESIGN
Live HD Images for Rapid Inspection
The 2.0 megapixel CMOS camera (1080p, 60fps) of the ZoomHD delivers crisp, sharp images for lightning-fast live viewing or captured photos. The ZoomHD connects to any HD monitor with its included HDMI cable. Wide Dynamic Range (WDR) enables visualization of more detail in the sample.
Wide 7:1 Zoom Range
The ZoomHD offers a 0.7x – 5.0x magnification range with click stops at 1x, 1.5x, 2x, 3x, 4x and 5x. Magnification can be easily adjusted on the front of the microscope.
Integrated LED Ring Light
A ring light is integrated into the ZoomHD microscope. 56 bright LEDs
provide brilliant, even illumination across the field of view. Use the adjust-able intensity to provide the right amount of illumination for your sample.
On-screen Camera Control With Optional Monitor — No PC required!
The ZoomHD features built-in camera that can be readily controlled using just the included wireless mouse. Save images directly to a user-supplied USB flash drive. No need for a PC!
Specifications
- Zoom Body: Zoom lens 0.7x—5x with click stops
- Objectives: 1x objective (included; CAT # 147-15-01), W.D. 110mm. 0.5x objective (optional; CAT # 147-15-05), W.D. 170mm.
- Illumination: Integrated LED ring light with 56 bulbs, adjustable intensity, color temperature 5000-5500K
- Camera: Built-in 2.0 MP CMOS camera with WDR image
- Input / Output Modes: HDMI Output (1080p, 60fps) ● 2 x USB 2.0
- Included: HDMI cable for connecting optional HD monitor; wireless mouse
- Storage: user-supplied USB flash drive (required for image capture). 128GB maximum.
- Stand: Post Mount to mount ZoomHD on stand with ø32mm pole (stand not included)
- Monitor Format: HD ready - monitor not included
- Power Supply: 100/240v; 50/60Hz; 12V, 3.3A power consumption
- Dimensions: Stand: mm X mm X mm (LWH) with standard 1.0x objective
