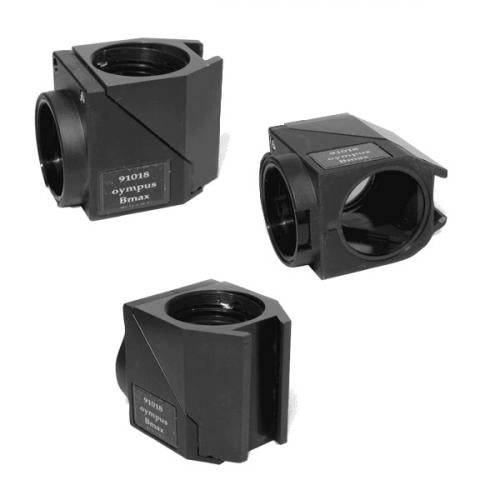

Chroma Fluorescence Filter Cube Holder for Olympus BX2 / IX2 U-MF2

This Chroma Technology fluorescence filter cube holder is intended for use with compatible Olympus BX41, BX51, BX61, IX51, IX71 and IX81. It provides a mechanical housing for fluorescence excitation, dichroic and emission filters when assembled with the appropriate optical components.

Important: This listing is for an EMPTY fluorescence filter cube holder. Excitation filters, emission filters and dichroic mirrors are NOT included and must be ordered separately.

Features and Applications

• Microscope-specific replacement or upgrade filter cube housing
• Designed for compatible Olympus BX41, BX51, BX61, IX51, IX71 and IX81
• Supports fluorescence microscopy when fitted with correctly sized optical filters
• Useful for configuring or replacing a filter cube in a fluorescence illuminator

Compatibility and Technical Notes

Excitation 25 mm; emission 25 mm; dichroic 38 × 26 mm.

Confirm the exact microscope model, fluorescence turret or illuminator, cube geometry and optical filter dimensions before purchase. Compatibility with one model in a series does not guarantee compatibility with all configurations.

Frequently Asked Questions

Does this include fluorescence filters?

No. This is an empty holder. Excitation, emission and dichroic filters must be selected separately.

Can I install the filters myself?

Some cube assemblies require special tools, gluing or alignment. Follow Chroma's instructions or request professional assembly when recommended.

How do I select the correct filter set?

Choose optical filters based on your fluorophore spectra, light source, microscope and detector. Contact Microscope Marketplace for assistance.
