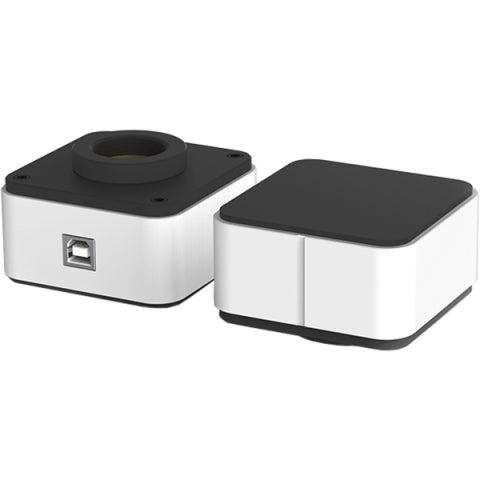

5MP USB2.0 CMOS Camera with Frame Rate Greatly Improved

The GT 5.0 is a 12MP CMOS camera that adopts Tucsen’s innovative graphics acceleration technology, which greatly improves the USB 2.0 frame rate under the premise of ensuring the original image output. This makes the GT 5.0 the first choice for users wanting simple and economical microscopic imaging.

Specification
Model:
GT 5.0
Sensor Type:
CMOS
Sensor Model:
SONY IMX335LQN-C
Color/Mono:
Color
Array Diagonal:
6.52mm
Resolution:
5MP, 2560(H) x 1920(V)
Pixel Size:
2μm x 2μm
Effective Area:
5.1mm x 3.8mm
Shutter Mode:
Rolling
Frame Rate:
29fps@USB2.0
Exposure Time:
1μs-1s941ms
PC Software:
Mosaic V2
Picture Format:
TIFF/JPG/PNG/DICOM
Multiple Cameras:
Supports 4 Cameras Simultaneously in SDK
SDK:
C/C++, C#, Directshow/Twain
Optical Interface:
Standard C Mount
Power:
2w
Dimensions:
68mm x 68mm x 42.5mm
Camera Weight:
236g
Operating System:
Windows 7/10 (32 Bit/64 Bit)/Mac
PC Configuration:
CPU: Intel Core i5 or better(Quad or more Core), RAM: 8G or more,
Data Interface:
USB2.0

Efficient image acquisition - editing - measurement - report output
From the user's point of view, redefining the image acquisition - editing - measurement - report output workflow process, taking into account the best operating procedures, greatly saves the operating time, effectively improving productivity.

Excellent imaging performance for brightfield, fluorescence and polarized imaging needs
The use of Tucsen's core ISP color-interpolation algorithm effectively corrects the color deviation of the sensor's spectral response, to simulate the human eye's sensitivity to color. The true color in the eyepiece, whether it is a biological bright field, stereo or fluorescence image.

Software: Mac , Windows

Tucsen Camera Quick Start Guide
