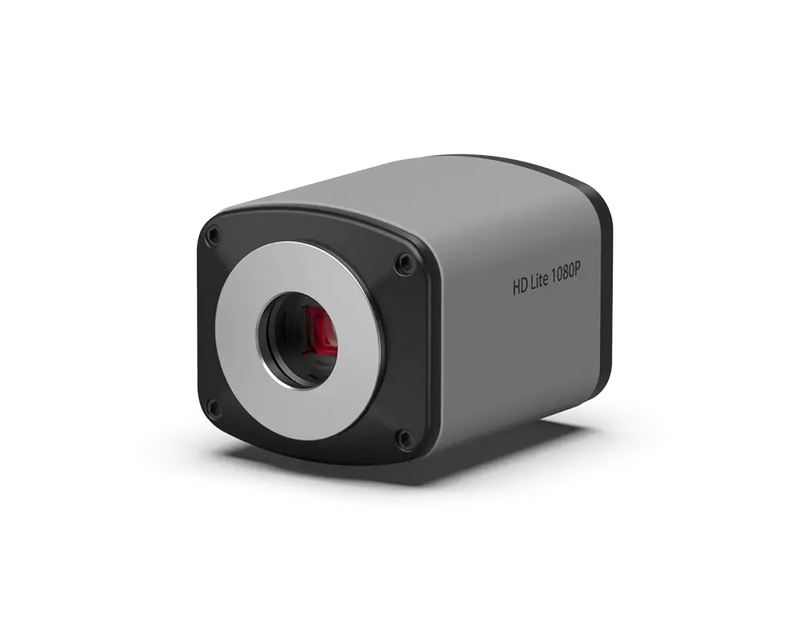

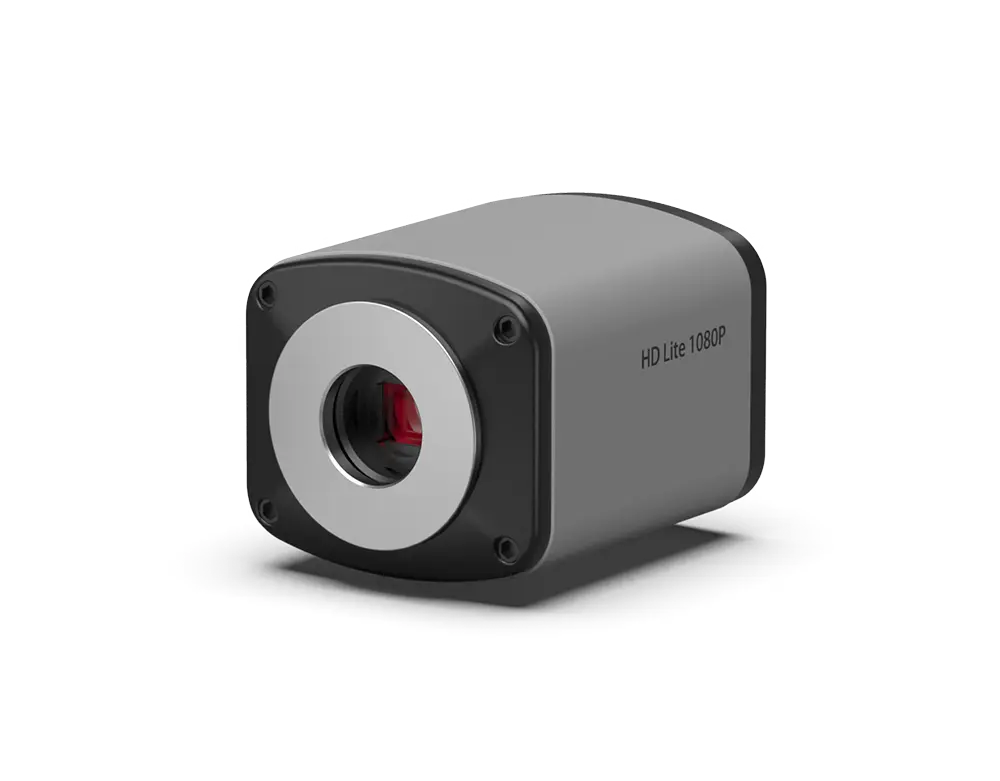

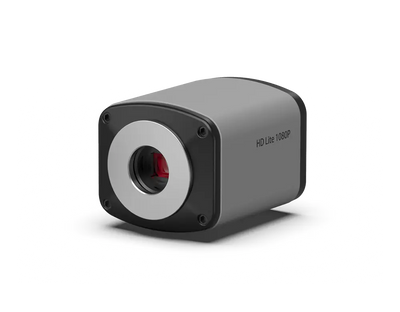

The Tucsen HD Lite is an affordable, user-friendly microscope camera designed for educators, researchers, and industrial professionals. Whether you need a powerful camera for a biology classroom, lab, or inspection station, this 5MP camera delivers sharp images and flexible connectivity.

For those who want simple, plug-and-play functionality, the Tucsen HD Lite comes with a simplified version of Mosaic software and a built-in mouse for easy on-screen control—no PC required! Just connect the camera directly to a monitor using an HDMI cable and start capturing images.

For advanced users, you can also connect via USB 2.0 and run the full Mosaic software on your PC or Mac for more features. And for the ultimate all-in-one setup, pair the camera with the Tucsen Heads Up Display, mounting it directly on your microscope.

Key Features:

• 5MP CMOS Sensor (2592x1944 resolution)

• 1/2.5" Sensor Size for clear, detailed images

• Pixel Size: 2.8μm x 2.8μm

• 15 FPS Frame Rate (USB 2.0 and HDMI)

• Exposure Modes: Auto or Manual

• Shutter Mode: Rolling

• Image Formats: JPG, PNG, TIFF, DICOM

• Data Interfaces: USB 2.0, SD, HDMI

• PC Software: Mosaic V2.1 (Windows 7/8/10, Mac compatible)

• Simplified Mosaic software and built-in mouse for plug-and-play HDMI use

• Standard C-Mount for microscope compatibility

• Camera Size: 90.7 x 74.5 x 67.2 mm

• Weight: 272g

The Tucsen HD Lite is an easy-to-use, cost-effective solution for microscopy imaging. Whether you're capturing images for research, teaching, or quality control, this camera offers the versatility and simplicity you need.
