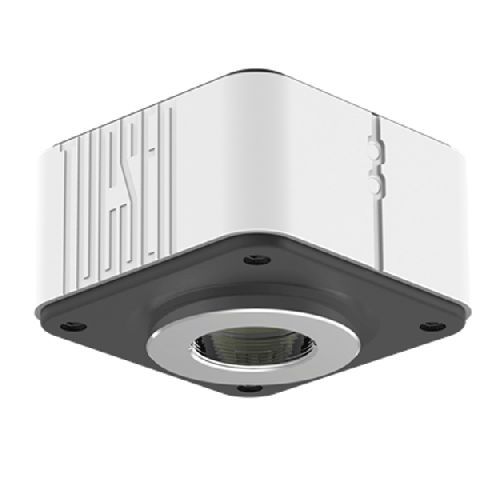

Tucsen MIchrome 5 Pro Microscope Camera

Microscope Marketplace Top Pick for High-Speed, High-Precision Imaging

The Tucsen MIchrome 5 Pro is our top recommendation for anyone needing fast, distortion-free imaging—whether for research, education, or industry. With a 5MP global shutter CMOS sensor from Sony, this camera delivers exceptional image quality, making it an ideal choice for fluorescence, polarized light, and brightfield microscopy.

Unlike rolling shutter cameras, the MIchrome 5 Pro uses global shutter technology to capture every pixel at the same instant. This means crisp, clear, and accurate images—even when working with moving samples or live specimens. Plus, the live stitching and live EDF (Extended Depth of Field) features save time and simplify your workflow.

Key Features:

✅ 5MP Global Shutter CMOS Sensor (Sony IMX264LQR-C)
✅ Distortion-Free Imaging — Ideal for fluorescence and fast-moving samples
✅ Global Shutter Technology for superior clarity
✅ 36 fps at Full Resolution with USB 3.0
✅ Live Stitching & Live EDF for extended depth of field
✅ True Color Accuracy with Tucsen’s ISP algorithm
✅ C Mount Interface — Compatible with a wide range of microscopes
✅ Multiple Camera Support — Connect up to 4 cameras via SDK
✅ Free Mosaic V2 Software Included for image editing, measurement, and reporting
✅ Supports Windows & Mac

Specifications:

• Sensor Type: CMOS (Sony IMX264LQR-C)

• Color/Mono: Color

• Resolution: 5MP (2448 x 2048)

• Pixel Size: 3.45μm x 3.45μm

• Frame Rate: 36 fps (USB 3.0)

• Exposure Time: 121μs–15s

• Data Interface: USB 3.0

• Image Formats: TIFF, JPG, PNG, DICOM

• Binning: 2x2, 3x3, 4x4

• Software: Mosaic V2

• Dimensions: 68 x 68 x 46 mm

• Operating System: Windows 7/10 (32/64 Bit), Mac

The Tucsen MIchrome 5 Pro is trusted by scientists, educators, and industry pros for its fast, reliable imaging and affordable price point. It’s a game-changer for anyone who needs real-time, high-resolution images without the wait.

Not sure if this is the right camera for you? Contact us here or give us a call—we’re happy to help!

Software

Tucsen Camera Quick Start Guide
